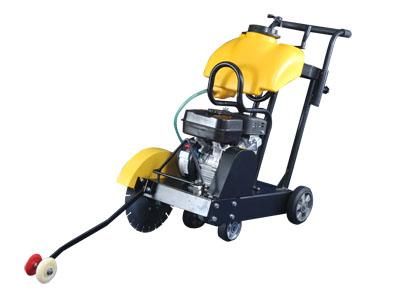

Floor saw
Walk behind floor saw is ideal for any jobs that require power and portability. This compact, lightweight saw has been engineered for maneuverability and reliability. Also, perfect weight distribution means excellent stability while sawing. It is widely used in service work, road maintenance, relief effort.......
PME floor saws are suitable for cutting expansion joints in asphalt and concrete concrete surfaces with a diamond blade.
They can also be used to cut asphalt for road maintenance.
Typical applications include floors and parking and cutting of road surface prior to excavation works.
Cutting trenches to lay pipe.
Cutting channels for laying cable.
Cutting Aluminum frame construction.
Feature
Ease operation
Humanized design handle with easy and comfortable operation.
Designed for left or right mounting of blade guard provides easy access for blade change and inspection.
Adjustable cutting depth
The crank can adjust cutting depth easily.
Elevating device is manual locked, which ensures the same cutting depth.
Guide-bar
The guide-bar with anti curl and anti vibration function, to ensure straight cutting, extend blade and machine usage life.

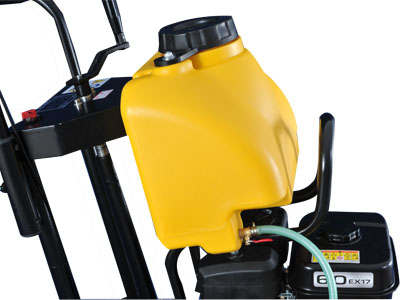

Water tank
Big capacity detachable water tank provides water to both sides of the blade, reduce blade temperature and restrain dust when cutting.
|
|
Model
|
PME-Q350H
|
PME-Q350L
|
PME-Q350R
|
PME-Q350BS
|
|
Engine
|
Honda GX160
|
Loncin G200F
|
Robin EY20
|
B&S 1062
|
|
Engine type
|
Air-cooled,single cylinder,4-stroke,petrol engine
|
|
Displacement [cc]
|
163
|
196
|
183
|
163
|
|
Engine power [HP]
|
5.5
|
6.5
|
5
|
5
|
|
Rated power [KW]
|
3.05
|
3.8
|
3.7
|
3.7
|
|
Speed [RPM]
|
3600
|
3600
|
3600
|
3600
|
|
Starting system
|
Manual start
|
|
Employed fuel
|
93#
|
|
Employed oil
|
10W-30
|
|
Fuel tank capacity [L]
|
3.6
|
3.6
|
3.8
|
1.8
|
|
Oil tank capacity [L]
|
0.6
|
0.6
|
0.6
|
0.6
|
|
Max. cutting depth [cm]
|
10
|
|
Forward mode
|
Manual push
|
|
Water tank capacity [L]
|
12
|
|
Blade size [mm]
|
300/350
|
|
N.W./G.W [kg]
|
79/89
|
|
Package (L x W x H) [cm]
|
90x52x104
|
|
|
Engine Periodic Maintenance Schedule
|
|
REGULAR SERVICE PERIOD
|
Each use
|
First month or 20 Hrs.
|
Every 3 months or 50 Hrs.
|
Every 6 months or 100 Hrs.
|
Every year or 300 Hrs.
|
|
Performed at every indicated month or operating hour interval, whichever comes first.
|
|
ITEM
|
|
|
Engine oil
|
Check level
|
√
|
|
|
|
|
|
Change
|
|
√
|
|
√
|
|
|
Air cleaner
|
Check
|
√
|
|
|
|
|
|
Clean
|
|
|
√(1)
|
|
|
|
Replace
|
|
|
|
|
√☆
|
|
Sediment Cup
|
Clean
|
|
|
|
√
|
|
|
Spark plug
|
Check-Clean
|
|
|
|
√
|
|
|
Replace
|
|
|
|
|
√
|
|
Spark arrester(optional parts)
|
Clean
|
|
|
|
√
|
|
|
Idle speed
|
Check-Adjust
|
|
|
|
|
√(2)
|
|
Valve clearance
|
Check-Adjust
|
|
|
|
|
√(2)
|
|
Fuel tank and strainer
|
Clean
|
|
|
|
|
√(2)
|
|
Combustion chamber
|
Clean
|
After every 300 Hrs. (2)
|
|
Fuel line
|
Check
|
Every 2 years (Replace if necessary) (2)
|
☆ Replace the paper element type only.
(1)Service more frequently when used in dusty areas.
(2)These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.
|
Floor saw Periodic Maintenance Schedule
|
|
Time/Contents
|
Daily Before Starting
|
After First 5 Hrs.
|
After First 50 Hrs.
|
Every Week or 25 Hrs.
|
Every month or 100 Hrs.
|
Every 3 months or 300 Hrs.
|
|
Check fule level
|
√
|
|
|
|
|
|
|
Check oil level of machine
|
√
|
|
|
|
|
|
|
Check fuel and fittings for cracks or leaks
|
√
|
|
|
|
|
|
|
Check and tighten engine cylinder screws
|
|
√
|
|
√
|
|
|
|
Check and tighten external hardware
|
|
√
|
|
√
|
|
|
|
Check V-belt
|
|
|
|
|
√
|
|
|
Clean engine cooling fins
|
|
|
|
√
|
|
|
|
Clean recoil starter
|
|
|
|
|
|
√
|
|
Clean engine muffler and exhaust port
|
|
|
|
|
|
√
|
Note: If engine performance is poor,please check,clean and replace air filter elements as needed.
|
|
|
