Portable concrete vibrator
This Vibrator is designed for the compaction of concrete by immersion of the vibrator head. Compaction improves the strength and finish of concrete by driving out entrapped air.
Application:
Civil: Roadways kerbing, bridge checks...
Commercial building: strip and raft foundations, stairs, walls, floors, driveway...
Residential building: floor stumps, wall cavities, house slabs, wall footing, paving slabs...
Rural: Fence posts, troughs...
Concrete Poker feature

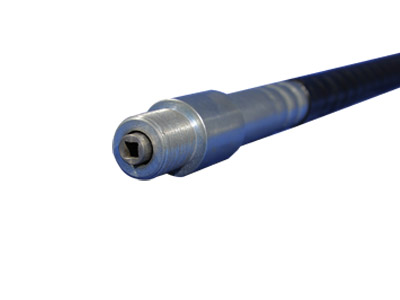

The vibrator head is driven by a rotating flexible drive shaft that transmits the drive from the drive unit.

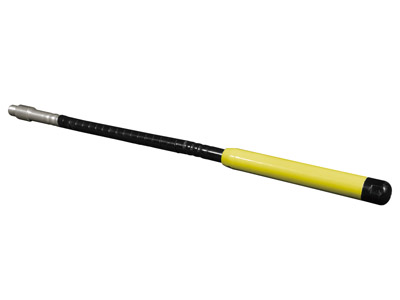

The vibrator head uses an eccentric mass to produce vibration. Ball bearing support the rotor at each end.
High frequency vibration allows the efficient compaction of low slump concrete mixes.
The advantages of consolidating concrete by vibration:
● Greater density of the concrete.
● Greater strength.
● Improved bond with reinforcement steel.
● Greater bond on construction joints.
● Greater durability.
● Improved product finish.
......
|
|
Portable Vibrator Technical Data
|
|
Model
|
PME-PVH
|
PME-PVZS
|
|

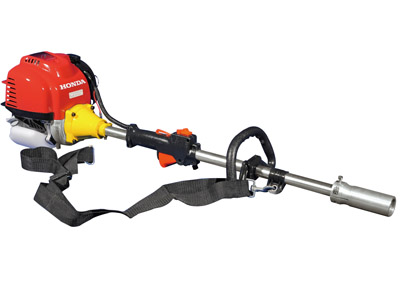

Engine
|
Honda GX35
|
Zongshen ZS35
|
|
Engine type
|
Air-cooled,single cylinder,4-stroke,petrol engine
|
|
Displacement [cc]
|
35.8
|
31
|
|
Engine power [HP]
|
1.2
|
1.0
|
|
Rated power [KW]
|
0.95
|
0.65
|
|
Speed [RPM]
|
7000
|
9500
|
|
Starting system
|
Recoil start
|
|
Employed fuel
|
93#
|
|
Employed oil
|
10W-30
|
|
Fuel tank capacity [L]
|
0.63
|
0.6
|
|
Oil tank capacity [L]
|
0.1
|
0.07
|
|
Coupling type
|
Square Socket
|
|
Vibrator poker
|
V35; V38; V45
|
|
N.W./G.W. [kg]
|
7/8
|
|
Poker Technical data
|
|
Model
|
V35
|
V38
|
V45
|
|
Poker size[dia.x Lenght]
|
35x335
|
38x380
|
45x400
|
|
Vibrating frequency [VPM]
|
12000-14000
|
|
Rotational speed [rpm]
|
6500-7500
|
|
Vibrating Amplitude [mm]
|
1
|
1.2
|
1.3
|
|
Dia. of flexible hose [mm]
|
30
|
30
|
30
|
|
Dia. of flexible shaft [mm]
|
10
|
10
|
10
|
|
Length [m]
|
1-2m as optional
|
|
N.W.[kg]
|
8
|
9
|
10
|
|
Package size [cm]
|
80x68x7
|
|
BEFORE EACH USE, inspect the general condition of the Concrete Vibrator. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, damaged electrical wiring, and any other condition that may affect its safe operation.
If abnormal noise or vibration occurs, have the problem corrected before further use. Do not use damaged equipment.
Clean all components with a damp cloth after each use. Remove all concrete residue.
After 50 hours, the Vibrating Head Assembly and Flexible Cable Assembly may require cleaning and lubrication.
Also, the motor brushes may need cleaning or replacement. This should be done by a qualified technician.
|
|
|
