Concrete Vibrator
The basic principal of concrete vibration is to consolidate the mix by removing entrapped air. Vibration is a series of rapid compressive impulses which greatly reduces the surface friction between the various size particles of the mix. The result is the rearrangement of these particles into a denser mass. During the vibration process. Unwanted trapped air escapes to the surface.
A concrete vibrator uses an off-centered weight, which is spun as much as 10,000 times a minute, causing large air pockets in the concrete to disperse as the concrete is shaken. Especially in pours of low slump concrete, which uses minimal water, the use of a vibrator is essential to ensure that the concrete does not bubble or form holes. In cases where consumers will be looking at the finished concrete, as is common in some schools of design that employ concrete counters and floors, this tool will help create an even and attractive surface, rather than one that may be slightly ragged.
The advantages of consolidating concrete by vibration:
● Greater density of the concrete.
● Greater strength.
● Improved bond with reinforcement steel.
● Greater bond on construction joints.
● Greater durability.
● Improved product finish.
......
|
|

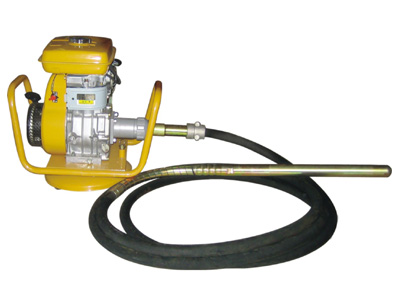

Vibrator Technical Data
|
|
Model
|
PME-VH
|
PME-VL
|
PME-VR
|
PME-VS
|
|
Engine
|
Honda GX160
|
Loncin G200F
|
Robin EY20
|
B&S 1062
|
|
Engine type
|
Air-cooled,single cylinder,4-stroke,petrol engine
|
|
Displacement [cc]
|
163
|
196
|
183
|
163
|
|
Engine power [HP]
|
5.5
|
6.5
|
5
|
5
|
|
Rated power [KW]
|
3.05
|
3.8
|
3.7
|
3.7
|
|
Speed [RPM]
|
3600
|
3600
|
3600
|
3600
|
|
Starting system
|
Manual start
|
|
Employed fuel
|
93#
|
|
Employed oil
|
10W-30
|
|
Fuel tank capacity [L]
|
3.6
|
3.6
|
3.8
|
1.8
|
|
Oil tank capacity [L]
|
0.6
|
0.6
|
0.6
|
0.6
|
|
Vibrator poker
|
V28; V32; V38; V45; V50; V60; V70
|
|
N.W./G.W. [kg]
|
22/25
|
|
Package (L x W x H) [cm]
|
53x42x45
|
|

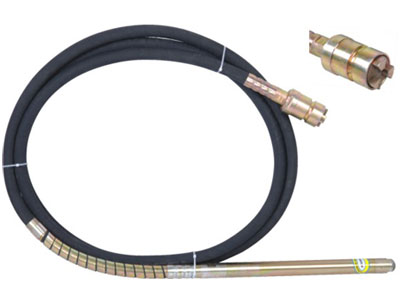

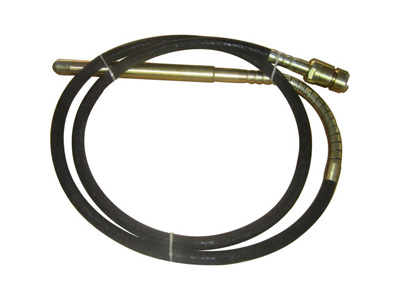

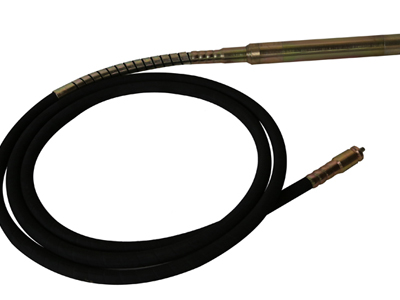

Poker Technical data
|
|
Model
|
V28
|
V32
|
V38
|
V45
|
V50
|
V60
|
V70
|
|
Poker size[dia.x Lenght]
|
28x450
|
32x450
|
38x465
|
45x475
|
50x475
|
60x480
|
68x480
|
|
Vibrating frequency [VPM]
|
12000-14000
|
|
Rotational speed [rpm]
|
3000-3600
|
|
Vibrating Amplitude [mm]
|
1.4
|
1.8
|
1.8
|
2
|
2
|
2.4
|
2.4
|
|
Dia. of flexible hose [mm]
|
30
|
30
|
30
|
30
|
32
|
32
|
32
|
|
Dia. of flexible shaft [mm]
|
10
|
10
|
10
|
10
|
12
|
12
|
12
|
|
Length [m]
|
6m (4-10m as optional)
|
|
N.W.[kg]
|
15
|
15.5
|
16
|
17
|
19
|
22
|
23
|
|
Package size [cm]
|
80x68x7
|
|
|
BEFORE EACH USE, inspect the general condition of the Concrete Vibrator. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, damaged electrical wiring, and any other condition that may affect its safe operation.
If abnormal noise or vibration occurs, have the problem corrected before further use. Do not use damaged equipment.
Clean all components with a damp cloth after each use. Remove all concrete residue.
After 50 hours, the Vibrating Head Assembly and Flexible Cable Assembly may require cleaning and lubrication.
Also, the motor brushes may need cleaning or replacement. This should be done by a qualified technician.
|
Engine Periodic Maintenance Schedule
|
|
REGULAR SERVICE PERIOD
|
Each use
|
First month or 20 Hrs.
|
Every 3 months or 50 Hrs.
|
Every 6 months or 100 Hrs.
|
Every year or 300 Hrs.
|
|
Performed at every indicated month or operating hour interval, whichever comes first.
|
|
ITEM
|
|
|
Engine oil
|
Check level
|
√
|
|
|
|
|
|
Change
|
|
√
|
|
√
|
|
|
Air cleaner
|
Check
|
√
|
|
|
|
|
|
Clean
|
|
|
√(1)
|
|
|
|
Replace
|
|
|
|
|
√☆
|
|
Sediment Cup
|
Clean
|
|
|
|
√
|
|
|
Spark plug
|
Check-Clean
|
|
|
|
√
|
|
|
Replace
|
|
|
|
|
√
|
|
Spark arrester(optional parts)
|
Clean
|
|
|
|
√
|
|
|
Idle speed
|
Check-Adjust
|
|
|
|
|
√(2)
|
|
Valve clearance
|
Check-Adjust
|
|
|
|
|
√(2)
|
|
Fuel tank and strainer
|
Clean
|
|
|
|
|
√(2)
|
|
Combustion chamber
|
Clean
|
After every 300 Hrs. (2)
|
|
Fuel line
|
Check
|
Every 2 years (Replace if necessary) (2)
|
☆ Replace the paper element type only.
(1)Service more frequently when used in dusty areas.
(2)These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.
|
|
|
