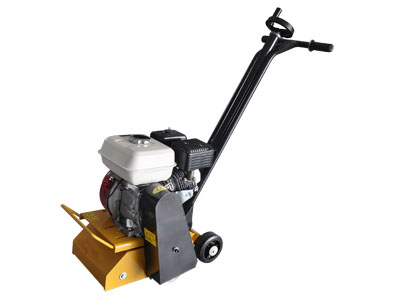

| PME-SM20 |
|
| |
| |
|
| |
| Tel:+86-510-83591868 Email:sales@pinnaclemachines.com |
| |
|
|
|
|
| Description |
Technical Data |
Maintenance |
|
|
What is scarifying?
With scarifying, cutters are loosely fitted on lateral shafts which are then placed inside a drum housing. The drum is placed inside the machine and once the machine is switched on, the rotating drum generates centrifugal force which throws the cutter at the surface, causing a mechanical cutting action. Dust and contaminants are moved to a dedicated dust collector. This makes the process almost dust-free in operation.
Features:
Scarifying depth is adjustable
Front mounting lifting handle for easy transportation
Heavy duty shock buffer mounts to reduce vibration toward handle and engine
Outlet dust-proof device
Sealed bearing extend usage life
Asphalt blades and cement blade as optional
PME Scarifying machine can used for:
To remove difficult coatings | such as glues, rubber, and other coatings from floors.
To remove hard and thick layers | of for example concrete and asphalt on highways and runways.
|
|
Engine Periodic Maintenance Schedule
|
|
REGULAR SERVICE PERIOD
|
Each use
|
First month or 20 Hrs.
|
Every 3 months or 50 Hrs.
|
Every 6 months or 100 Hrs.
|
Every year or 300 Hrs.
|
|
Performed at every indicated month or operating hour interval, whichever comes first.
|
|
ITEM
|
|
|
Engine oil
|
Check level
|
√
|
|
|
|
|
|
Change
|
|
√
|
|
√
|
|
|
Air cleaner
|
Check
|
√
|
|
|
|
|
|
Clean
|
|
|
√(1)
|
|
|
|
Replace
|
|
|
|
|
√☆
|
|
Sediment Cup
|
Clean
|
|
|
|
√
|
|
|
Spark plug
|
Check-Clean
|
|
|
|
√
|
|
|
Replace
|
|
|
|
|
√
|
|
Spark arrester(optional parts)
|
Clean
|
|
|
|
√
|
|
|
Idle speed
|
Check-Adjust
|
|
|
|
|
√(2)
|
|
Valve clearance
|
Check-Adjust
|
|
|
|
|
√(2)
|
|
Fuel tank and strainer
|
Clean
|
|
|
|
|
√(2)
|
|
Combustion chamber
|
Clean
|
After every 300 Hrs. (2)
|
|
Fuel line
|
Check
|
Every 2 years (Replace if necessary) (2)
|
☆ Replace the paper element type only.
(1)Service more frequently when used in dusty areas.
(2)These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.
|
Power trowel Periodic Maintenance Schedule
|
|
Time/Contents
|
Daily Before Starting
|
After First
5 Hrs.
|
After First
50 Hrs.
|
Every Week or 25 Hrs.
|
Every month or 100 Hrs.
|
Every 3 months or 300 Hrs.
|
|
Check fule level and fittings for cracks or leaks
|
√
|
|
|
|
|
|
|
Check oil level of machine
|
√
|
|
|
|
|
|
|
Check and tighten engine cylinder screws
|
|
√
|
|
√
|
|
|
|
Check and tighten external hardware
|
|
√
|
|
√
|
|
|
|
Clean engine cooling fins
|
|
|
|
√
|
|
|
|
Clean recoil starter
|
|
|
|
|
|
√
|
|
Change gearbox oil
|
|
|
√
|
|
|
√
|
|
Clean engine muffler and exhaust port
|
|
|
|
|
|
√
|
Note: If engine performance is poor,please check,clean and replace air filter elements as needed.
|
|
Engine Periodic Maintenance Schedule
|
|
REGULAR SERVICE PERIOD
|
Each use
|
First month or 20 Hrs.
|
Every 3 months or 50 Hrs.
|
Every 6 months or 100 Hrs.
|
Every year or 300 Hrs.
|
|
Performed at every indicated month or operating hour interval, whichever comes first.
|
|
ITEM
|
|
|
Engine oil
|
Check level
|
√
|
|
|
|
|
|
Change
|
|
√
|
|
√
|
|
|
Air cleaner
|
Check
|
√
|
|
|
|
|
|
Clean
|
|
|
√(1)
|
|
|
|
Replace
|
|
|
|
|
√☆
|
|
Sediment Cup
|
Clean
|
|
|
|
√
|
|
|
Spark plug
|
Check-Clean
|
|
|
|
√
|
|
|
Replace
|
|
|
|
|
√
|
|
Spark arrester(optional parts)
|
Clean
|
|
|
|
√
|
|
|
Idle speed
|
Check-Adjust
|
|
|
|
|
√(2)
|
|
Valve clearance
|
Check-Adjust
|
|
|
|
|
√(2)
|
|
Fuel tank and strainer
|
Clean
|
|
|
|
|
√(2)
|
|
Combustion chamber
|
Clean
|
After every 300 Hrs. (2)
|
|
Fuel line
|
Check
|
Every 2 years (Replace if necessary) (2)
|
☆ Replace the paper element type only.
(1)Service more frequently when used in dusty areas.
(2)These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.
|
Scarifying Machine Periodic Maintenance Schedule
|
|
Time/Contents
|
Daily Before Starting
|
After First 5 Hrs.
|
After First 50 Hrs.
|
Every Week or 25 Hrs.
|
Every month or 100 Hrs.
|
Every 3 months or 300 Hrs.
|
|
Check fule level
|
√
|
|
|
|
|
|
|
Check oil level of machine
|
√
|
|
|
|
|
|
|
Check fule line and fittings for cracks or leaks
|
√
|
|
|
|
|
|
|
Check and tighten engine cylinder screws
|
|
√
|
|
√
|
|
|
|
Check and tighten external hardware
|
|
√
|
|
√
|
|
|
|
Check V-belt
|
|
|
|
|
√
|
|
|
Clean engine cooling fins
|
|
|
|
√
|
|
|
|
Check and clean spark plug gap
|
|
|
|
√
|
|
|
|
Check and clean spark plug
|
|
|
|
|
√
|
|
|
Clean recoil starter
|
|
|
|
|
|
√
|
|
Clean engine muffler and exhaust port
|
|
|
|
|
|
√
|
Note: If engine performance is poor,please check,clean and replace air filter elements as needed.
|
|
|
