Description

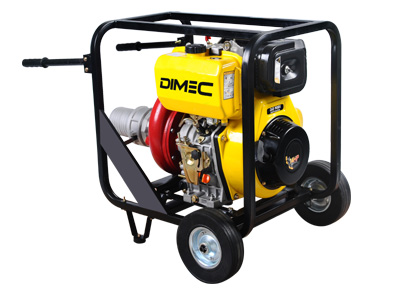

The air-cooled diesel water pump with compact structure, small size, easy installation and high efficiency, is self-priming single-stage centrifugal water pumps．The body of the water pump is constructed of high quality cast iron. The internal rotating rings are constructed of ceramics and the stationary rings are constructed of grahite．It is ideal for general purpose use such as draining pools, ponds, and sumps of clear water. This clear water pump has a powerful diesel engine, making it ideal for remote water irrigation.
Feature
High lift,high flow
The cast iron water pump is high lift,high flow, which is suitable for irrigation in mountainous region,hills......
check valve
The cutting-edge check valves hold a prime when the pump is not running to quickly get you back up and pumping.

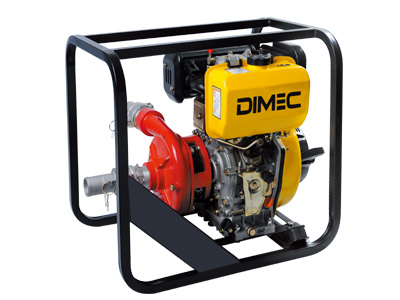

Strong protection frame
The water pump has welded rugged steel roll cage. It gives the pump maximum protection at the jobsite and while transporting. The wide base gives rock-solid stability.

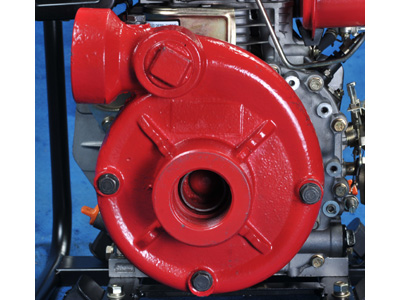

Durable and Efficient
To ensure the best performance, longer life and smoother operation, we gave this heavy-duty water pump a cast iron impeller and volute to increase pump life.
|
|
|
Model
|
PME100C(E)
|
|
Pump
|
Inch
|
4''
|
|
Rated head [m]
|
55
|
|
Max. suction head [m]
|
6
|
|
Rated capacity [m³/h]
|
110
|
|
Self-priming time [s/4m]
|
120
|
|
Engine
|
Mode
|
PME192F(E)
|
|
Type
|
Single-cylinder, vertical, air-cooled, 4-stroke, diesel engine
|
|
Starting system
|
Recoil start or Electric start
|
|
Fuel tank capacity [L]
|
5.5
|
|
Pump set
|
Continuous running time [h]
|
2.0
|
|
N.W/G.W [kg]
|
60/65
|
|
Package (L x W x H) [cm]
|
66x48x62
|
|
|
Periodic Maintenance Schedule
|
|
REGULAR SERVICE PERIOD
|
Each use
|
1st month or 20 Hrs.
|
Every 3 month or 100 Hrs.
|
Every 6 month or 500 Hrs.
|
Every year or 1000 Hrs.
|
|
Performed at every indicated month or operating hour interval, whichever comes first.
|
|
Check and fill fuel
|
√
|
|
|
|
|
|
Discharge fuel
|
|
√
|
|
|
|
|
Check and fill oil
|
√
|
|
|
|
|
|
Check oil leakage
|
√
|
|
|
|
|
|
Check and tighten externa hardware
|
√
|
|
|
|
|
|
Change oil
|
|
√
|
√
|
|
|
|
Change oil filter
|
|
|
|
√
|
|
|
Change air filter element
|
|
|
|
√(1)
|
|
|
Clean filter of Fuel
|
|
|
|
√
|
√(2)(change)
|
|
Check high pressure oil pump
|
|
|
|
√(2)
|
|
|
Check nozzle
|
|
|
|
√(2)
|
|
|
Check fuel pipe
|
|
|
|
√(2)
|
|
|
Adjust gaps of air intake and exhausted gate
|
|
√(2)
|
|
√(2)
|
|
|
Grind air intake and air exhausted gate
|
|
|
|
|
√(2)
|
|
Change piston ring
|
|
|
|
|
√(2)
|
|
Check electrolytic solution of accumulator
|
Each month
|
|
Check electric brush and slide ring
|
|
|
|
√(2)
|
|
|
Check insulation resistance
|
Stop working is over 10 days
|
(1)Service more frequently when used in dusty areas.
(2)These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.
|
|
|
