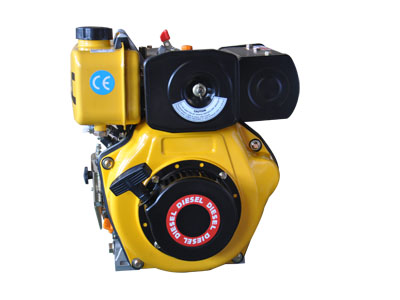

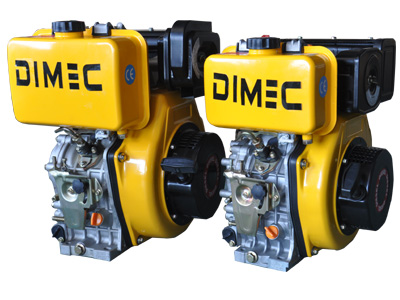

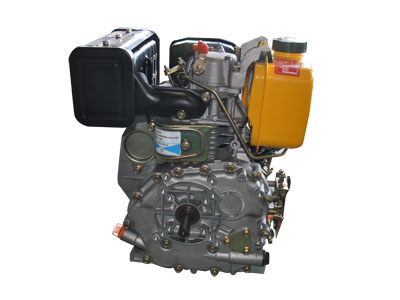

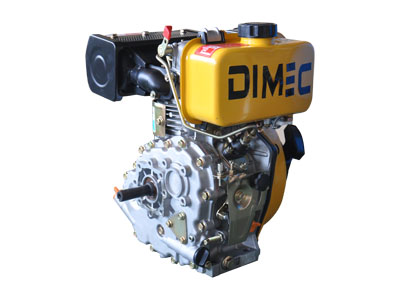

Single-cylinder air-cooled diesel engine
Diesel engine is an internal-combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber.It can be used to power diesel generator, water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. “Green Engine” is our target, pay more attention to climate protection and environmental protection.
Feature：
Drive System
The drive gear design is incorporated into diesel engine which will greatly reduce vibration and noise.
Fuel System
Fuel systems assure high efficiency operation.
The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions.
Low noise
The high efficiency muffler system greatly lowers exhaust noise. With the advanced design air cleaner system, intake noise is reduced to a low level. The design or the cylinder block, engine cover, and valve train all combine to reduce engine noise levels.
Ease operation
Low vibration and noise makes operators feel comfortable even after long hours of operation.
Two kinds of easy starting system: recoil and electric
Lightweight alloys used for main engine parts
A small-sized engine body built for application in a strict environment
Application
For generator sets
For pump groups
For agricultural machinery
|
|
Model
|
PME178F(E)
|
PME178FS(E)
|
|
Type
|
Single-cylinder, vertical, air-cooled, 4-stroke, diesel engine
|
|
Output type
|
Crankshaft output
|
Camshaft output
|
|
Bore×stroke [mm]
|
78x62
|
|
Displacement [ml]
|
296
|
|
Compression Ratio
|
19:1
|
|
Rated speed [rpm]
|
3000
|
3600
|
1500
|
1800
|
|
Rated output [kw]
|
3.7
|
4.0
|
3.7
|
4.0
|
|
Max output [kw]
|
4.0
|
4.4
|
4.0
|
4.4
|
|
Fuel consumption [g/kw·h]
|
<280
|
|
Starting system
|
Recoil start or Electric start
|
|
Fuel tank capacity [L]
|
3.5
|
|
Lube oil capacity [L]
|
1.1
|
|
Fuel type
|
0#(summer),－10#(winter) diesel
|
|
Lube oil type
|
SAE 10W-30
|
|
Continuous running time [h]
|
2.5
|
2.0
|
2.5
|
2.0
|
|
Package (L x W x H) [cm]
|
48x46.5x52.5
|
|
N.W/G.W [kg]
|
31/36
|
|
|
Periodic Maintenance Schedule
|
|
REGULAR SERVICE PERIOD
|
Each use
|
1st month or 20 Hrs.
|
Every 3 month or 100 Hrs.
|
Every 6 month or 500 Hrs.
|
Every year or 1000 Hrs.
|
|
Performed at every indicated month or operating hour interval, whichever comes first.
|
|
Check and fill fuel
|
√
|
|
|
|
|
|
Discharge fuel
|
|
√
|
|
|
|
|
Check and fill oil
|
√
|
|
|
|
|
|
Check oil leakage
|
√
|
|
|
|
|
|
Check and tighten externa hardware
|
√
|
|
|
|
|
|
Change oil
|
|
√
|
√
|
|
|
|
Change oil filter
|
|
|
|
√
|
|
|
Change air filter element
|
|
|
|
√(1)
|
|
|
Clean filter of Fuel
|
|
|
|
√
|
√(2)(change)
|
|
Check high pressure oil pump
|
|
|
|
√(2)
|
|
|
Check nozzle
|
|
|
|
√(2)
|
|
|
Check fuel pipe
|
|
|
|
√(2)
|
|
|
Adjust gaps of air intake and exhausted gate
|
|
√(2)
|
|
√(2)
|
|
|
Grind air intake and air exhausted gate
|
|
|
|
|
√(2)
|
|
Change piston ring
|
|
|
|
|
√(2)
|
|
Check electrolytic solution of accumulator
|
Each month
|
|
Check electric brush and slide ring
|
|
|
|
√(2)
|
|
|
Check insulation resistance
|
Stop working is over 10 days
|
(1)Service more frequently when used in dusty areas.
(2)These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.
|
|
|
